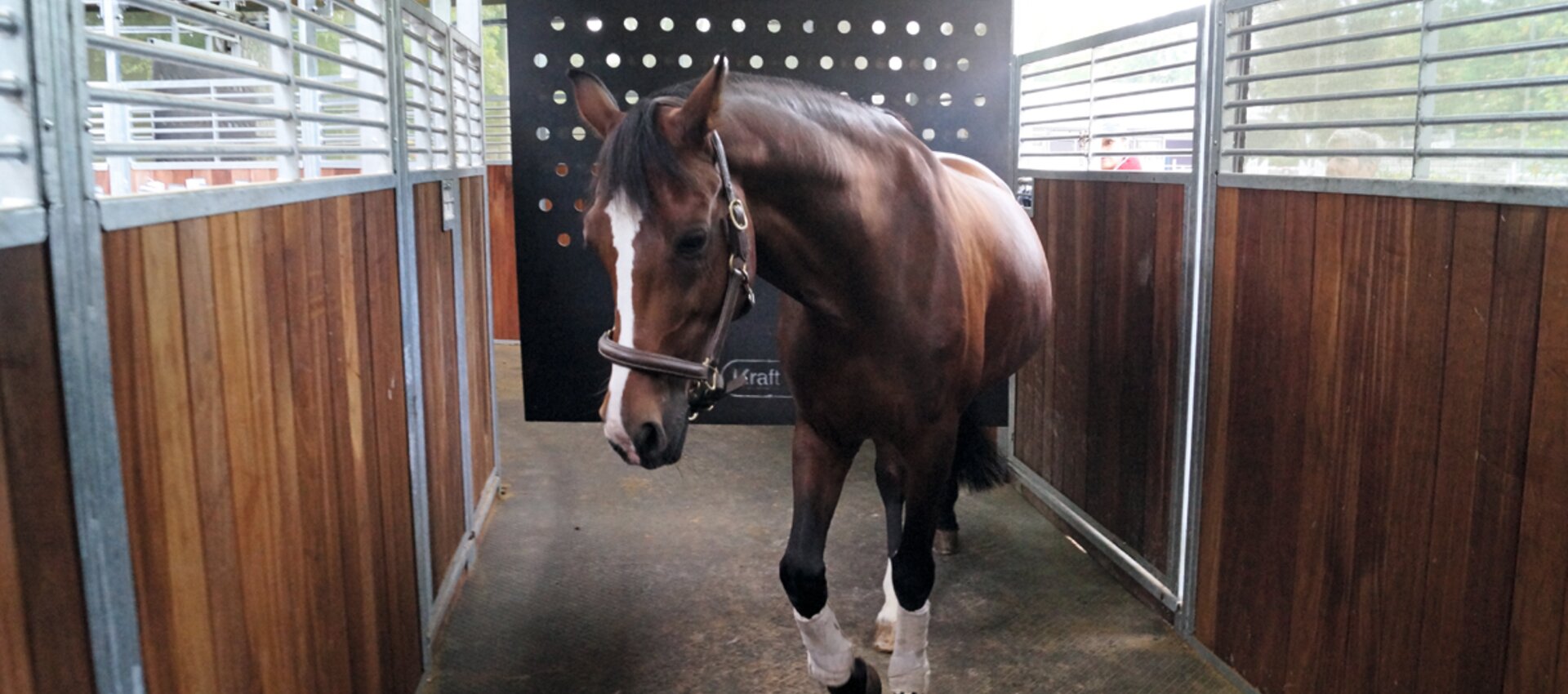

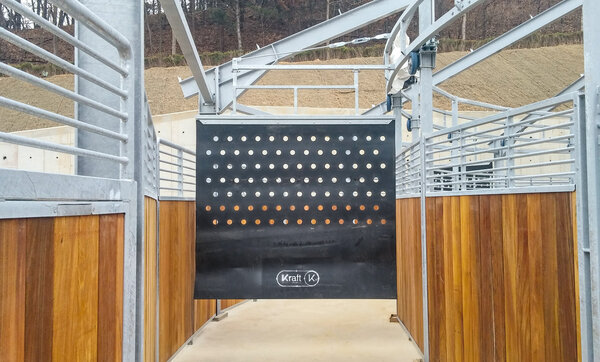

Separating Gates: Hanging, Rotating

Kraft's hanging and rotating gates create partitions so that multiple horses can safely train at the same time while in their own separate space.
These moving gates motivate horses to walk, providing direction and speed. They are designed with the utmost safety standards and offer horses a sufficient range of motion. The hanging and rotating gates are hung at a height of 7.5' (2.3 m) and are 7' (2.2 m) wide.

KRAFT recommends a minimum distance of 23' (7 m) between the gates. The number of partitions depends on the size of the horse walker.

Round horse walker example:
Outer diameter 49' (15 m) = 6 horses
Circumference 154' (47 m) = 6 × 25.5' (7.8 m) partitions

Oval horse walker example:
Outer dimensions 33' × 66' (10 × 20 m) = 6 horses
Circumference 167' (51 m) = 28' (6 × 8.5m) partitions
